| 起源の場所: | シンセン、中国 |
|---|---|
| ブランド名: | OPTFOCUS |
| 証明: | CE & FC |
| モデル番号: | OFSB-5312-03LD |
| 最小注文数量: | 1組 |
| 価格: | USD 46.99 |
| パッケージの詳細: | 販売人の標準的な輸出パッケージ |
| 受渡し時間: | の中では支払を得た3-7日が後 |
| 支払条件: | L/C、T/T、D/A、ウェスタン・ユニオン、Paypal |
| 供給の能力: | 10000個1ヶ月 |
| プロダクト状態: | 標準的 | 証明: | CE,FCC |
|---|---|---|---|
| 製品名: | SFPの光学トランシーバー | 保証: | 1年 |
| 製造業者: | シンセン |

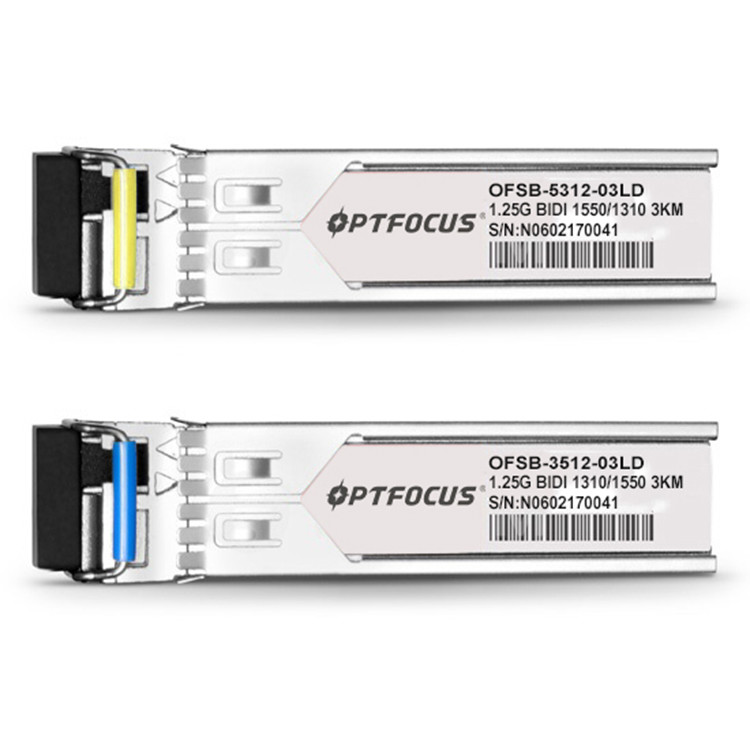

OPTFOCUS 1.25G SFP Optical Transceiver OFSB-5312-03LD SFP Optical Transceiver BI-BD SM LC 3KM 1550/1310NM
| 一 SFP Optical Transceiver Details | |
| Model Number: OFSB-5312-03LD | Connector:LC |
| Type: Fiber Optic Transceivers | Diagnostics:digital |
| Place of Origin: Shenzhen, China | TX Power(dBm):0~+4 |
| Brand Name: OPTFOCUS | Temperature:0°C~70°C |
| Network:Wired LAN | Voltage supply:3.3v |
| Wavelength:1550/1310NM | RX Sens(dBm):<=24 |
| Data Rate:1.25G | Use:FTTX |
| Working Distance:3km | Certification:FCC |
|
二 SFP Optical Transceiver Transmitter Characteristics |
|||||
| Parameter | Symbol | Min. | Typ. | Max. | Units |
| Optical Transmitter Power | P0 | 6 | 7.5 | 11 | dBm |
| Optical Transmitter Power off | POFF | - | - | -39 | dBm |
| Output Center Wavelength | λ | 1480 | - | 1500 | nm |
| Output Spectrum Width | Δλ | - | - | 1.0 | nm |
| Side Mode Suppression Ratio | SMSR | 30 | - | - | dB |
| Extinction Ratio | ER | 9 | - | - | dB |
| Optical Rise Time | - | - | - | 260 | ps |
| Optical Fall Time | - | - | - | 260 | ps |
| Optical Eye Diagram | Compliant with IEEE Std 802.3ahTM-2004 | ||||
| Tolerence to Tx Back Reflection | - | -15 | - | - | dB |
| Data Rate | - | - | 1.25 | - | Gb/s |
| Single Ended Data Input Voltage Swing | VPP | 200 | - | 1200 | mV |
| Differential Input Impedance | ZIN | 80 | 100 | 120 | ohm |
| Tx_fault Output Voltage- High | VOH | 2.4 | - | - | V |
| Tx_fault Output Voltage- Low | VOL | - | - | 0.4 | V |
| Tx_Dis Input Voltage- High | VIH | 2.0 | - | - | V |
| Tx_Dis Input Voltage- Low | VIL | - | - | 0.8 | V |

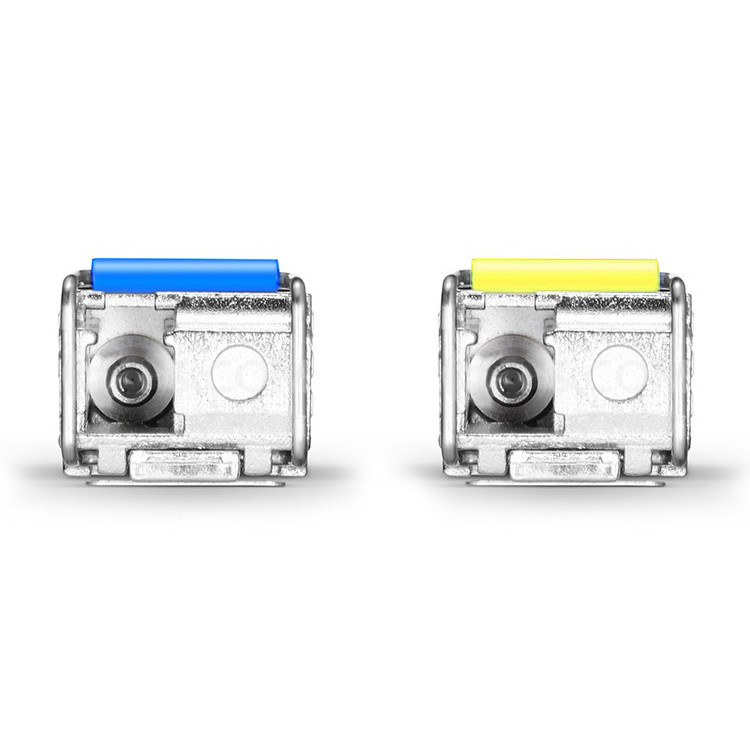

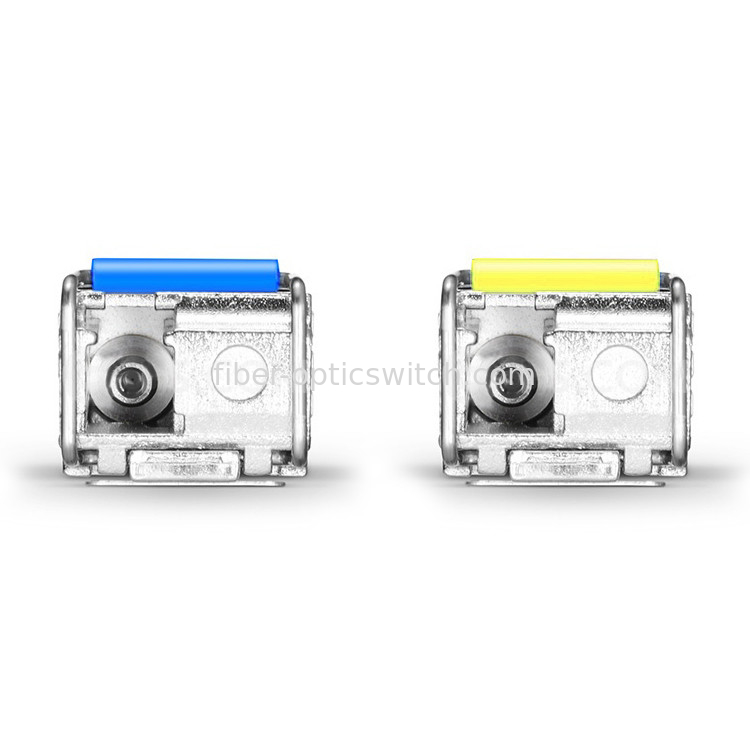

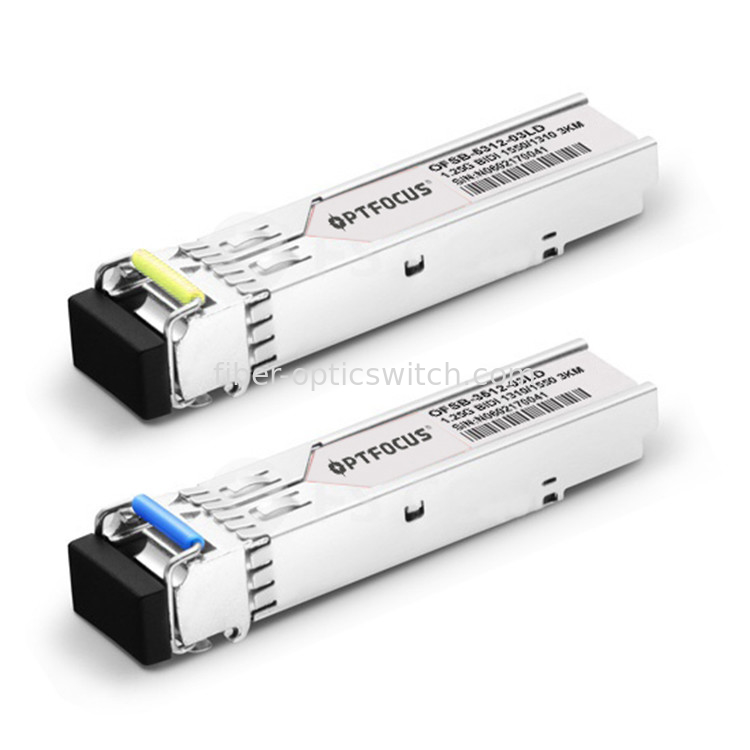

三 SFP Optical Transceiver image details
四 Advantage of our company :
① National High-tech Enterprise integrating with R&D, manufacturing,marketing of FTTH/FTTx Access solutions&products.
② Fiber Optical Innovative &production team Over 13 years;
③ Fiber optical active and passive components production Workshop;
④ Strict quality management system;
⑤ Professional One stop supply&service;
⑥ OEM&ODM available;
⑦ Reliable and Timely customer services;
| 五 Packaging & Delivery(SFP Optical Transceiver) | |
| Selling Units:Single item | Single package size: 0.8X0.3X0.3 cm |
| Single gross weight:0.100 kg | Package Type:carton |
六 FAQ
Q:Are you trading company or manufacturer?
A:We are factory.
Q:How long is your delivery time?
A:Generally it is 2-5 days if the goods are in stock. or it is 10 days if the goods are not in stock, it is according to quantity.
Q:Do you have MOQ?
A:For stock products,we don't have MOQ. For custom product,we ask for low MOQ.
七 SFP Optical Transceiver Certification
