| 起源の場所: | 中国 |
|---|---|
| ブランド名: | OPTFOCUS |
| 証明: | CE |
| モデル番号: | OFSX624-VWU |
| 最小注文数量: | 100 PC |
| 価格: | USD 20~23 / piece |
| パッケージの詳細: | 1部分/箱 |
| 受渡し時間: | 5-10日は量によって、決まります |
| 支払条件: | L/C、T/T、ウェスタン・ユニオン、Paypal等 |
| 供給の能力: | 50000 PC/月 |
| イーサネット ポート: | 1GE+3FE | WIFI: | 2.4G |
|---|---|---|---|
| アンテナ: | 2 | 実用温度: | -5~+55℃ |
| 次元: | 188*125*35mm | キーワード: | FTTH ONU |

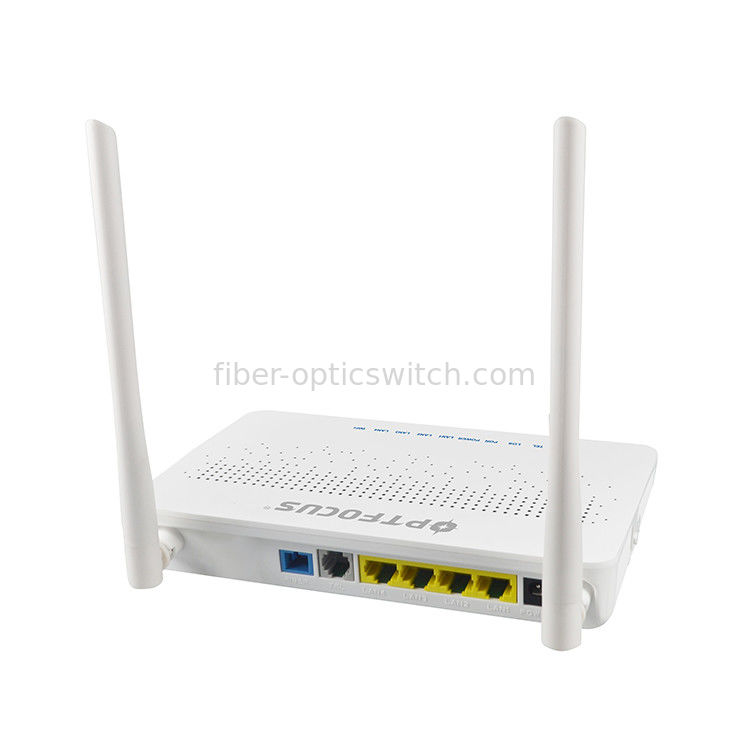

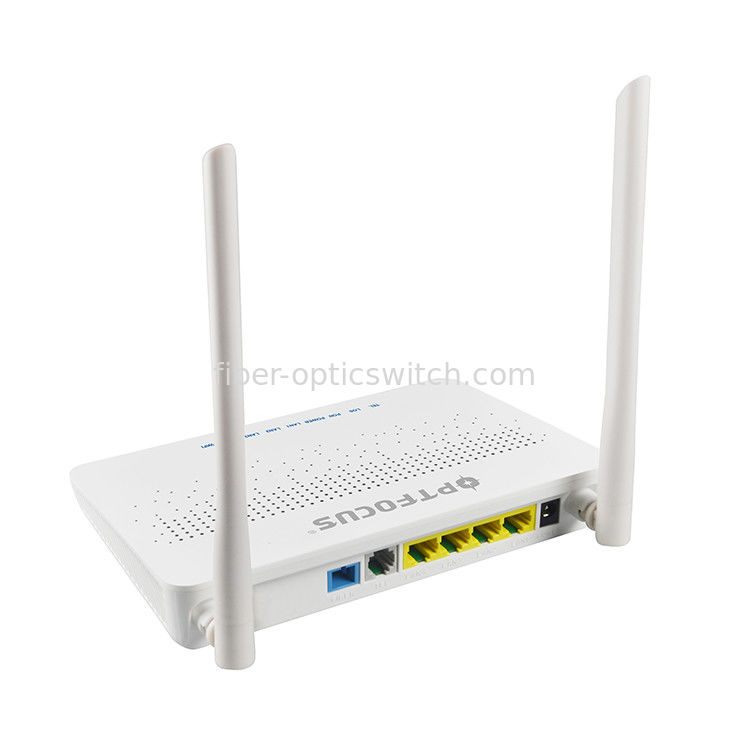

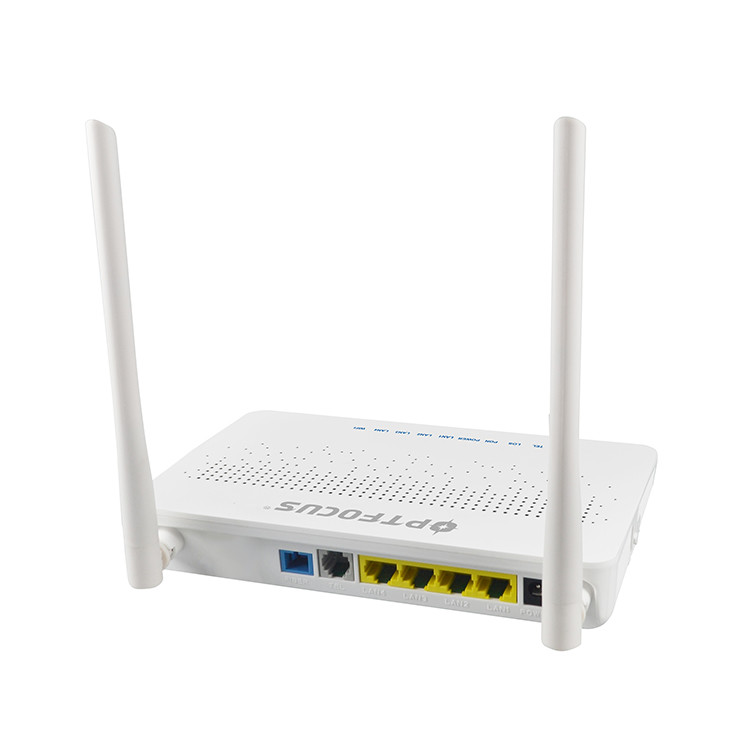

Indoor optical network unit 1GE 3FE 2T2R 2.4G wifi epon gpon onu with telephone port
Description:
1GE+3FE Ethernet ports with Wifi USB VOIP XPON ONU for FTTH solution
OFSX624-VWU XPON(GPON and EPON dual mode) ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU -T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.
Related products
Basic Characteristics
| Tech parameters | description |
|
Up-link interface |
1 XPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber type:SC/UPC Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism |
| Wavelength(nm) | TX 1310nm,RX 1490nm |
| Fiber connector | SC/UPC connector (SC / APC optional) |
| Down-link data interface | 3*10/100Mbps and 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface |
| Indicator LED | 9 pcs |
| DC supply interface | input＋12V 1.5A |
| Power | ≤10W |
| Operating temperature | -5～+55℃ |
| Humidity | 10～85%(non-condensation) |
| Storage temperature | -30～+70℃ |
| Dimension(MM) |
188*125*35mm(mainframe) |
| Weight | 0.6Kg(mainframe) |
VOIP Technica l feature
| Tech features | description |
| Voltage and Current Monitoring | The XPON ONU continuously monitors the TIP, RING, and battery voltages and currents via an on-chip Monitor ADC |
| Power Monitoring and Power Fault Detection |
The XPON ONU monitoring functions are used to continuously protect against excessive power conditions |
| Thermal Overload Shutdown | If the die temperature exceeds the maximum junction temperature threshold, the device will shut itself down |
WIFI characteristics
| Tech features | description |
| antenna |
2T2R Mode 5DBI Gain ,Frequency:2.4G |
| rate | 300Mbps PHY rate |
| encryption methods | WFA,WPA,WPA2,WAPI |
Solutions
FAQ
1. Can i have a sample before bulk order?
Yes, we support to provide sample for you to test our product quality before your bulk order.
2. Can I use our own logo and label?
Yes, we could provide OEM service and manufacture the products with your own label.
3. What is the delivery time?
For usual products. We keep the stock, could send 1-3 days after the PO. For large quantities and special products, please check the delivery time with our sales representative.
We deal business in fiber optic equipment, our main products cover in EPON/GPON/XPON ONU, OLT, SFP Module, Fiber Switch, FTTH box, fiber patch cord, pigtails and so on. If you have any inquiry about these products, please don't hesitate to contact us. We shall be pleasured to service you to do win-win business.
