| 起源の場所: | 広東省、中国 |
|---|---|
| ブランド名: | OPTFOCUS |
| 証明: | ISO9001 ANATEL CE |
| モデル番号: | OFSX624-VWU |
| 最小注文数量: | 1部分 |
| 価格: | USD15-25/UNIT EXW CHINA |
| パッケージの詳細: | 40pcs/box |
| 受渡し時間: | 10仕事日 |
| 支払条件: | L/C、D/A、T/T、D/P、ウェスタン・ユニオン、MoneyGram |
| 供給の能力: | 1ヶ月あたりの50000 PC |
| アップリンク インターフェイス: | 1つのXPONインターフェイス、SCの単一モード単一繊維RX 2.488 Gbits/s率およびTX 1.244 Gbits/s （GPON）、RX 1.244 Gbits/s率およびTX 1.244 | モード: | XPON |
|---|---|---|---|
| 光学力: | 0~4 dBm | 感受性: | -28 dBm |
| 表示器LED: | 9 PC | 実用温度: | -5~+55℃ |
| 次元（mm）: | 188*125*35mm （本体） | 保証: | 1年 |
| キーワード: | zte f660 ont |
Wholesale ftth 4lan tel with big covering area wifi ONU with wifi hybird GEPON similar to zte f660 ont

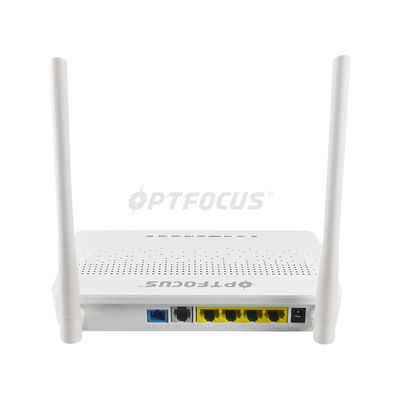

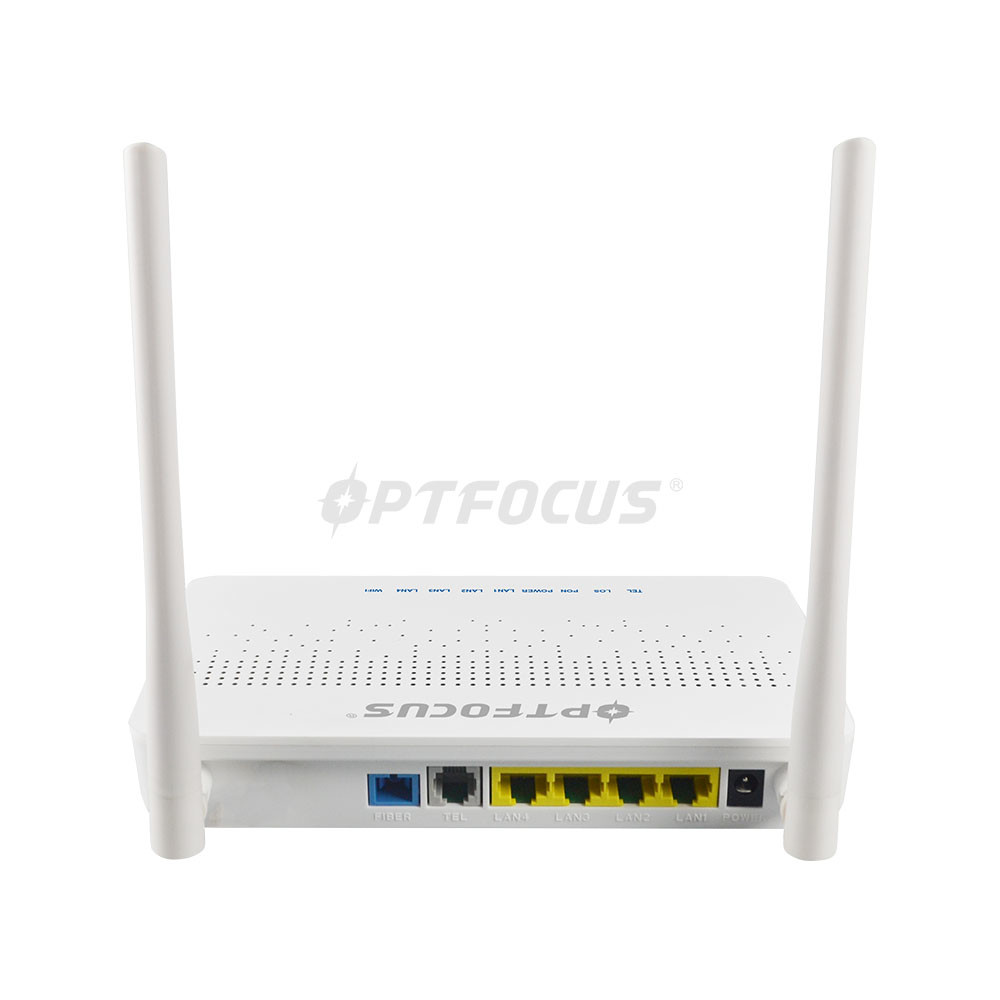

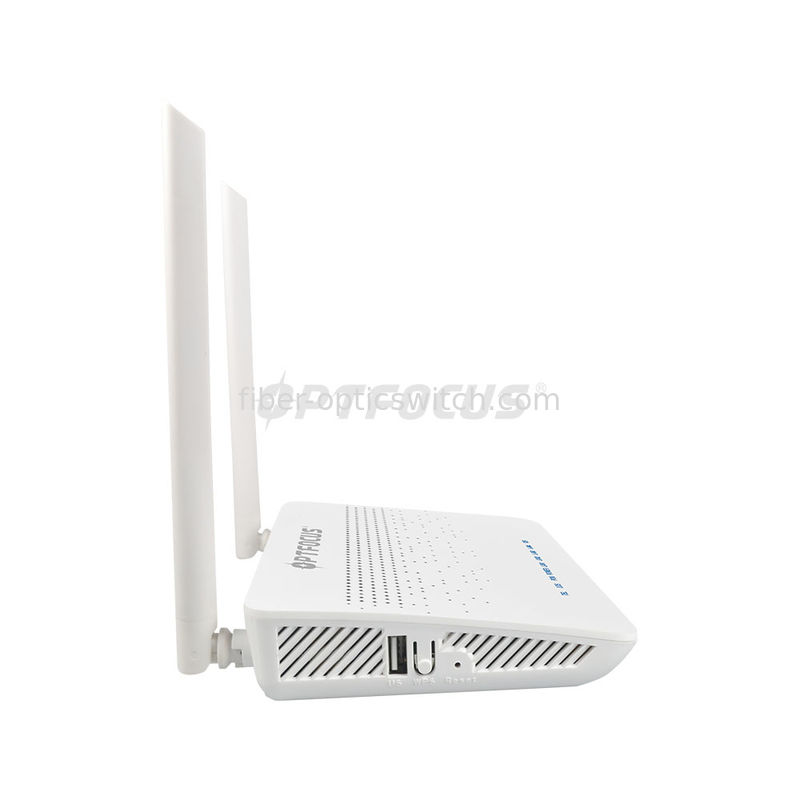

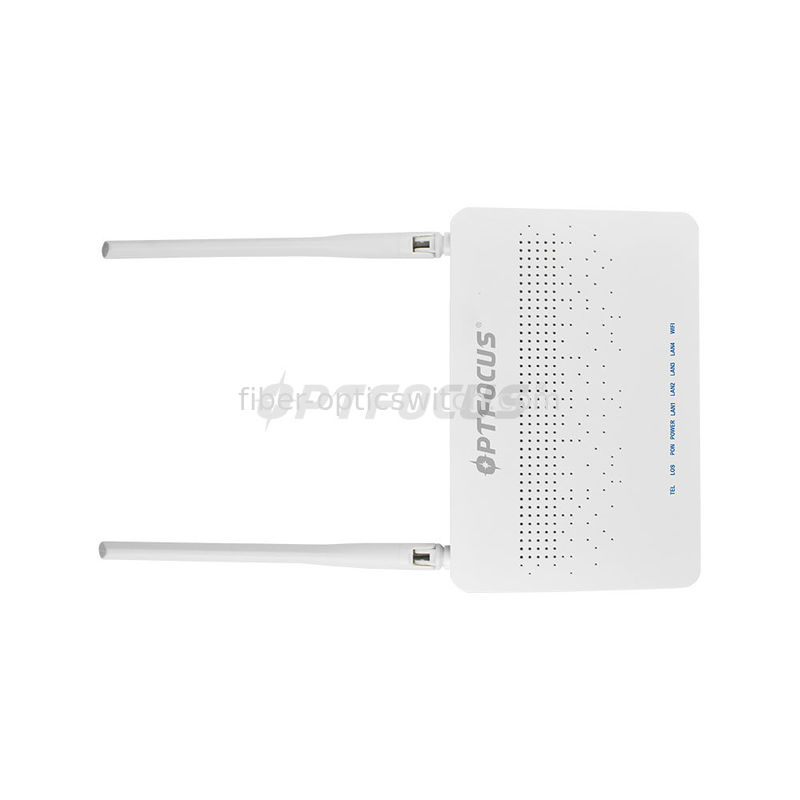

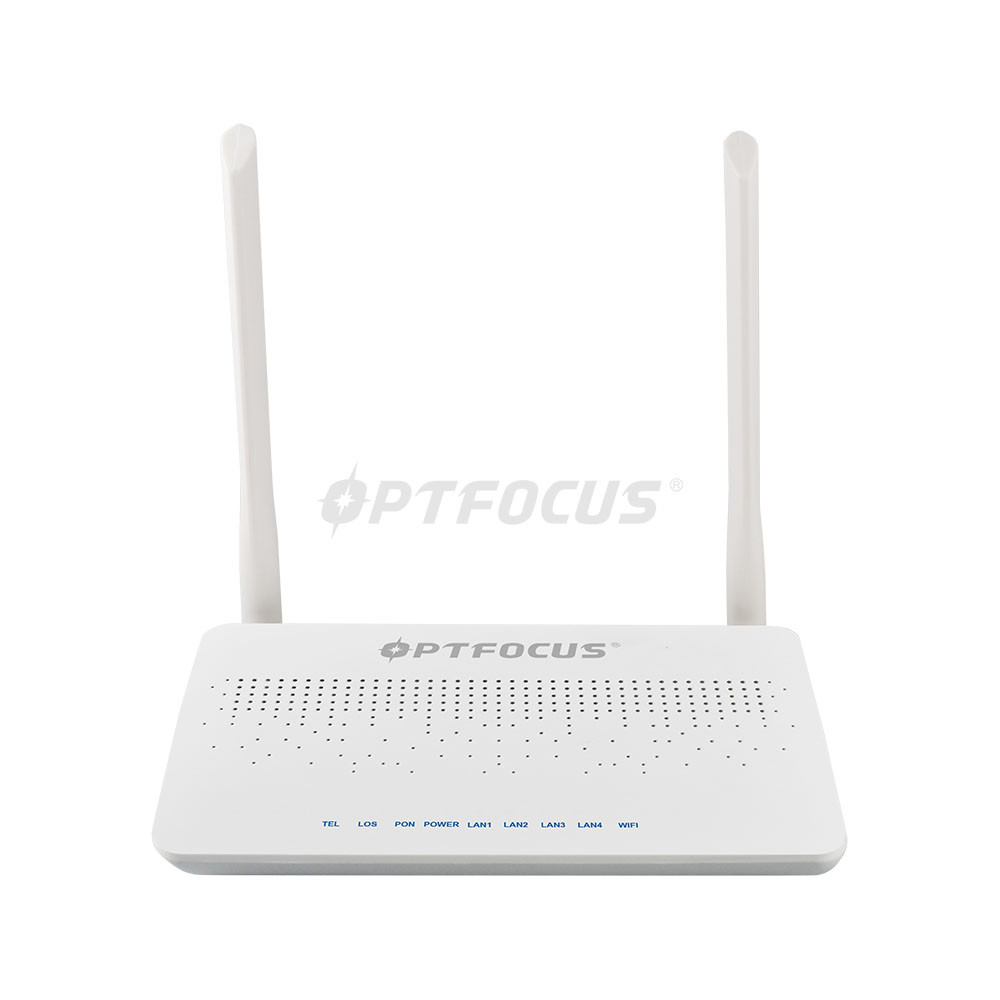

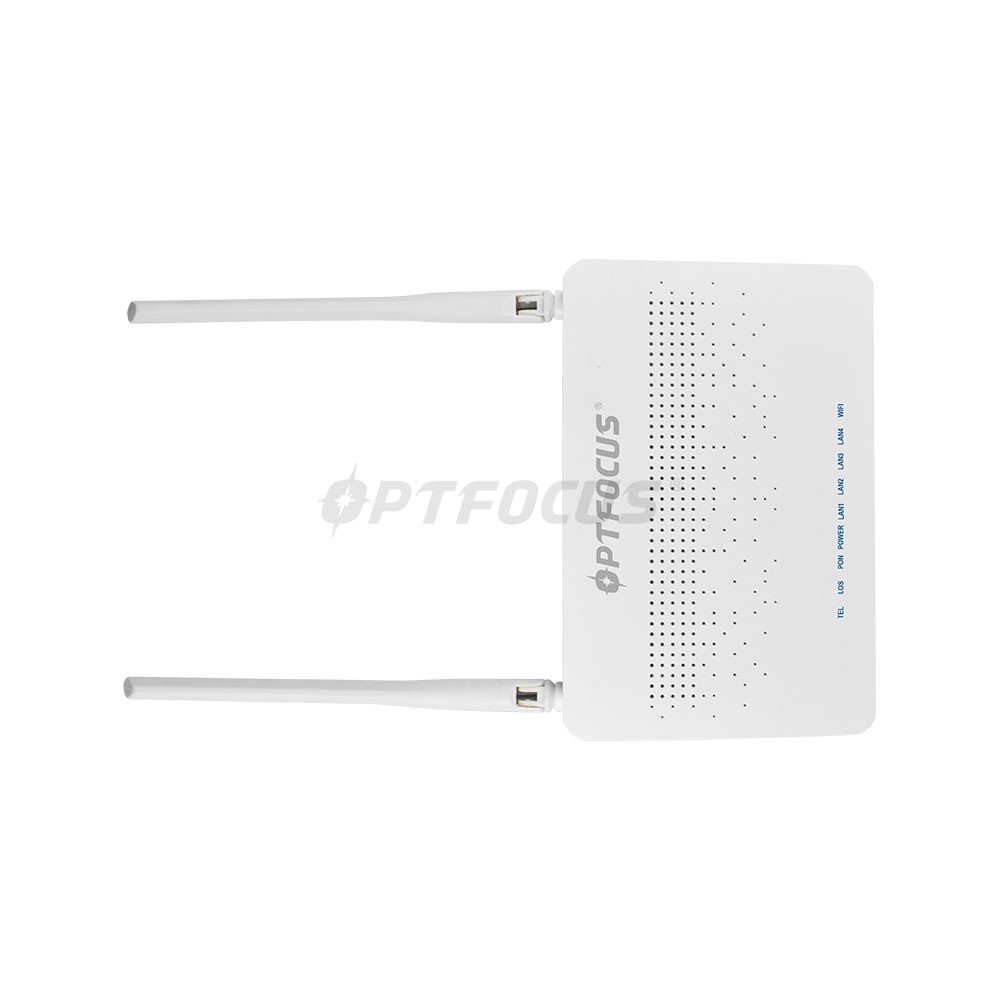

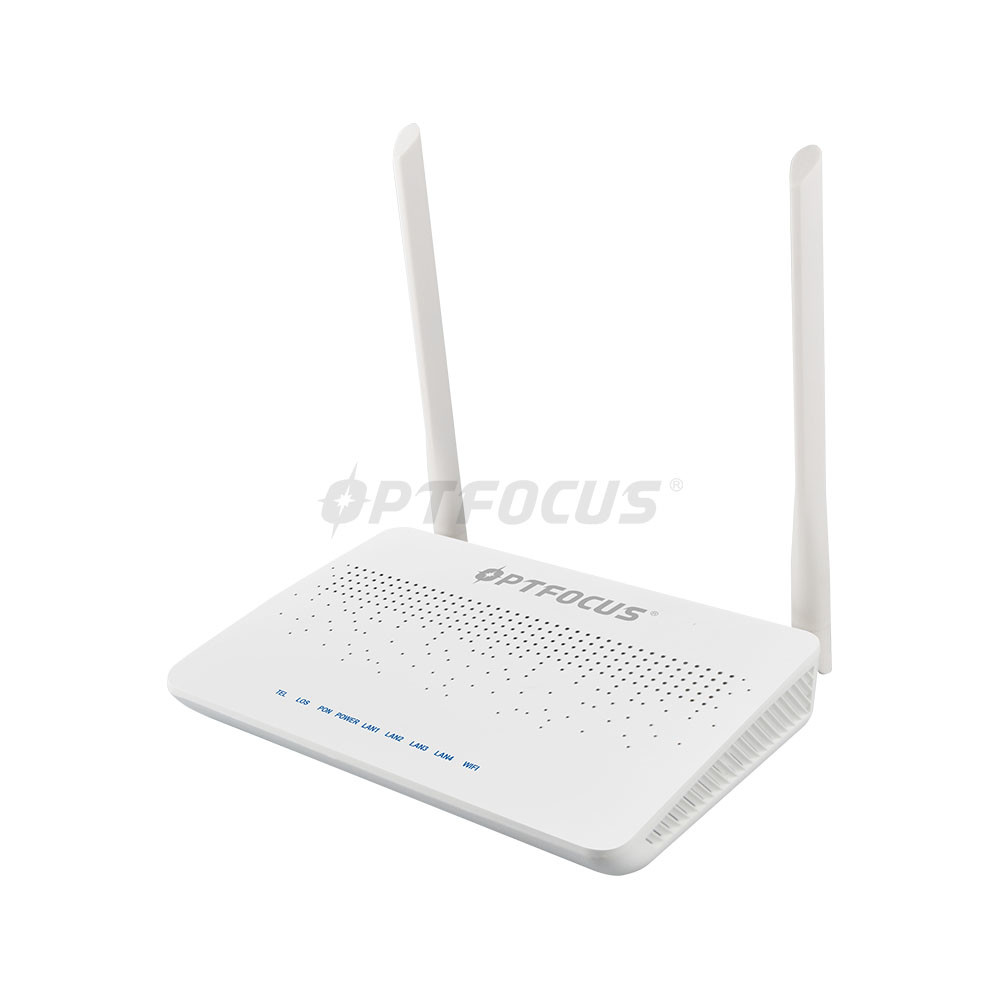

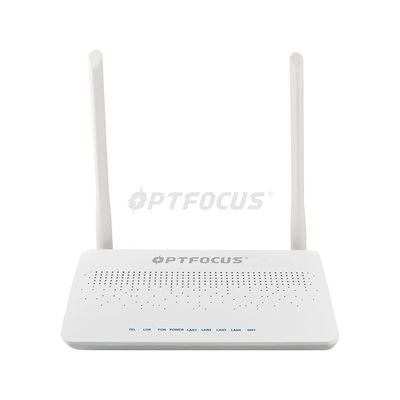

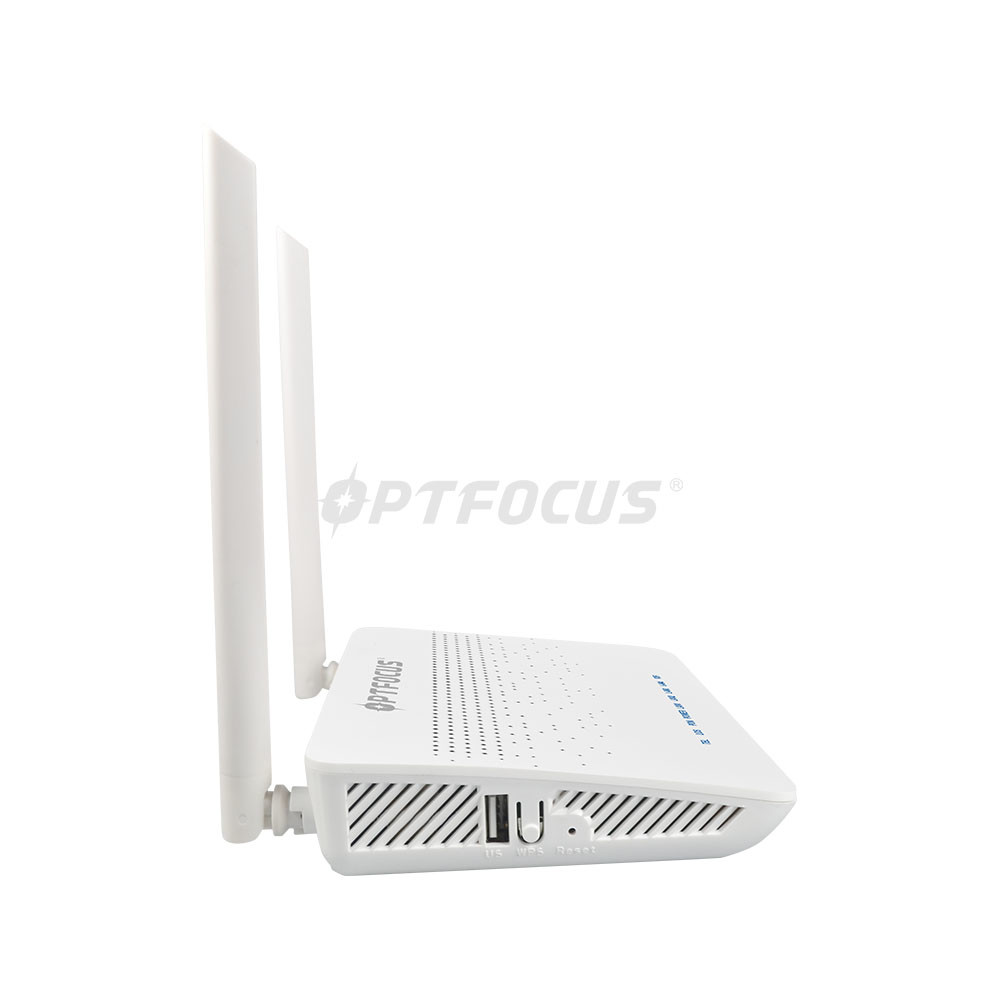

OFSX624-VWU
1GE+3FE Ethernet ports with Wifi USB VOIP XPON ONU for FTTH solution
Description:
OFSX624-VWU XPON(GPON and EPON dual mode) ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.
BASIC CHARACTERISTICS:
| Tech parameters | description |
|
Up-link interface |
1 XPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber type:SC/UPC Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism |
| Wavelength(nm) | TX 1310nm,RX 1490nm |
| Fiber connector | SC/UPC connector (SC / APC optional) |
| Down-link data interface | 3*10/100Mbps and 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface |
| Indicator LED | 9 pcs |
| DC supply interface | input＋12V 1.5A |
| Power | ≤10W |
| Operating temperature | -5～+55℃ |
| Humidity | 10～85%(non-condensation) |
| Storage temperature | -30～+70℃ |
| Dimension(MM) | 188*125*35mm(mainframe) |
| Weight | 0.5Kg(mainframe) |
WIFI CHARACTERISTICS:
| Tech features | description |
| antenna |
2T2R Mode 5DBI Gain ,Frequency:2.4G |
| rate | 300Mbps PHY rate |
| encryption methods | WFA,WPA,WPA2,WAPI |
VOIP TECHNICAL FEATURE:
| Tech features | description |
| Voltage and Current Monitoring | The XPON ONU continuously monitors the TIP, RING, and battery voltages and currents via an on-chip Monitor ADC |
